Cabin Details

Living space and kitchen

Miele CS 7612 FL 2-hob induction cooker
Miele H6200 BM combi electric oven & microwave
Corian countertop (White Jasmine)
Stainless Steel undermount sink, Franke Maris MRX 110-34
Vitrifrigo fridge with separate freezer compartments and ice maker, Inox panels, 360L
Sphere Touch Control Rangehood TCR-001
Slide out shelves in pantry
4-person dinette with leather upholstery
Stainless steel, height adjustable table leg
X-move table top

Bathroom

Separate shower and toilet
Integrated shelves and footrest in shower
Cassette toilet with ceramic bowl, Dometic Saneo (including external hatch for cassette removal and SOG)
Corian countertop with integrated washbasin
Mirrored cupboards above bathroom sink
ICON wall mounted vent with external stainless steel cover
Frosted glass door in toilet which also closes across walkway to enclose bathroom
Clear glass door in shower

Interior

Exterior

6 hard glass double glazed windows with KCT insect screens and blinds
1 entrance door
KCT ISR manually activated, horizontally sliding insect screen for door
2 large access hatches to cargo bay
2 small access hatches to technical equipment
45° slope at rear of cabin
1 x KCT large window roof hatch
1 x KCT small window roof hatch
Airline rail for additional sun sail, awning on approx. 60% of cabin length
Driver cab roof rack with brush guards
Brush guard aluminium tubes on cabin roof (left, right and back)
6 underfloor cargo boxes plus 4 smaller boxes around wheel arches
Foldable ladder in box below entrance door, electrically actuated
motorbike lift (electronically actuated) vertical lift, galvanised and RAL coated
spare wheel holder on rear motorbike platform
2 x sand ladders
sand ladder holder
External painting in Stone grey RAL 7030 to match Cab

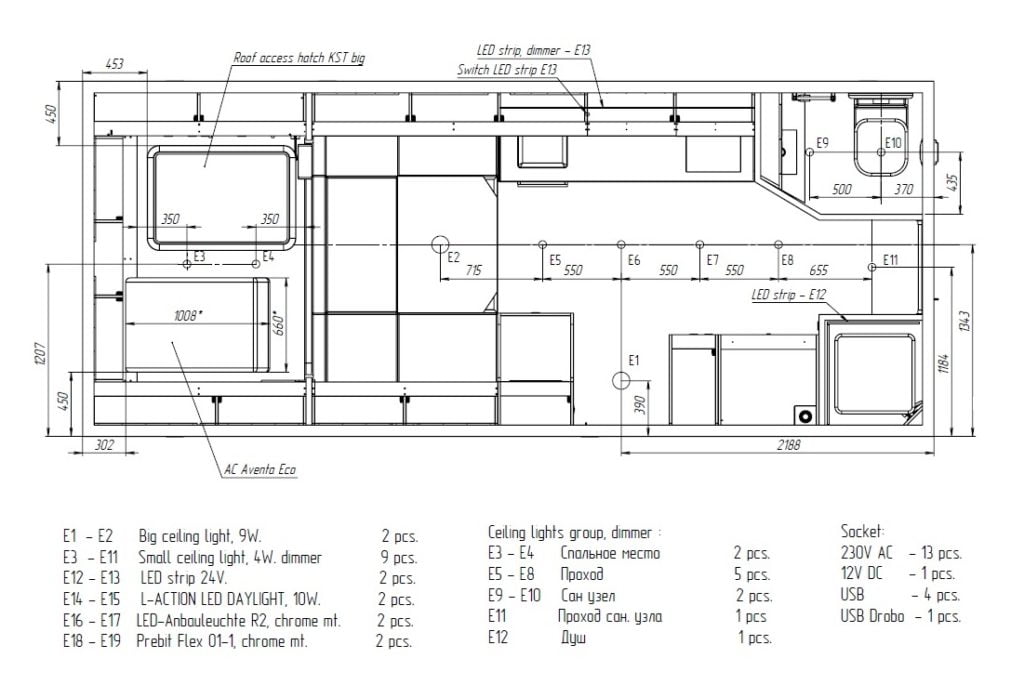

Electrical

4 solar panels, total 1320 W
580Ah@24V 2V GEL baterie cells, Mastervolt Mass Sine 24/5000 (230V/60Hz) inverter
ChargeMaster 24/100-3 charger, 110V charging capability included
Mastervolt Solar Charger SCM 60
Mastervolt control panel “EasyView 5”
Mastervolt charge isolator
Power sockets: 13 x 230V (including 1 in cargo bay), 4 x USB, 1 x 12V DC, 1 dual side USB
Quick LED ceiling lights 2 x 10W (in cargo bay), 2 x 9W and 9 x 4W
2 LED strips 24V – kitchen and shower
Prebit 2 x wall spots & 2 x flex reading lights
2 x Labcraft LED scenelite S18 for external lighting
2 x Sirocco II 12/24V fans
CO₂Alarm
Samsung TV 32″ on built in vertical slide behind dinette
PlayStation storage behind dinette back

Equipment

5 kW Webasto liquid heating with automatic height adjustment
Under floor heating in living area, shower and toilet, with radiator below dinette and towel dryer/radiator in toilet
Under floor heating below bed
30L hot water boiler & 230V AC heating element
Carbon filters for fresh water
SEAGULL drinking water filter
Purion UV water treatment system
Water pump
Pressurised water supply bypassing fresh water tank
Freshwater filling system from external unpressurized source like lake, reservoir or bucket
Washing machine/dryer Bosch WKD28541GB 7 Kg, fixed installation, accessible from the inside
Diesel generator Dometic TEC40 D
Roof mounted AC Aventa Eco 1,7 kW
3G/LTE (2x sim cards) WiFi router with roof antenna
Telco Wing TV antenna

Liquids

Miscellaneous

Cabin passage to driver cabin, including lockable door with KCT system
Cabin passage noise insulation cover attached with velcro (attached in the passage)
Customised storage in cargo bay
Froli Star Mobile spring system
Froli Tour mattress
Shoe cupboard at entrance door
Garbage bin mounted on entrance door
Engine pre-heating from cabin heater
4×4 STIS semi automatic tire inflation system
Mekra rear view camera with monitor in driver cab
Heat recovery system for living cabin from truck engine
External shower
